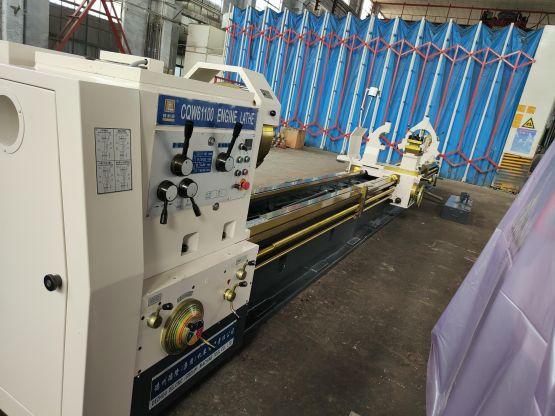

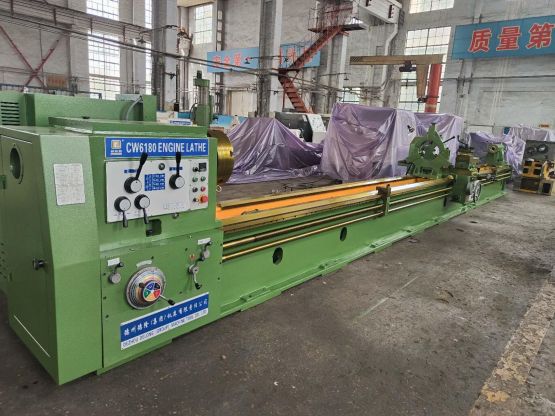

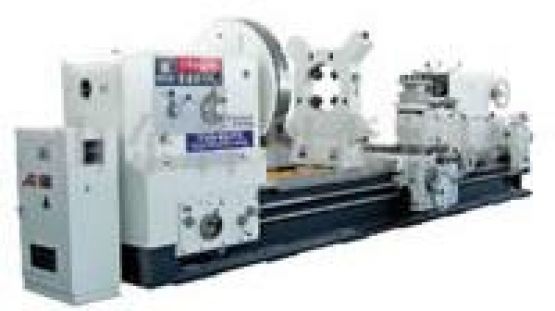

중국 대형선반 신품 덕주

가격협의

분류 대형선반
제조회사 중국 덕주기상창
제조년도 2024년 03월
제품위치 해외
제품상태 아주좋음
규격 스윙 1000/1250/1400/1600/2000 * 6m/8m/10m/12m/15m
담당자 덕주 코리아
이메일 sksea99@hanmail.net

문의전화01028454417

덕주코리아

스토어바로가기

판매자 인기제품

제품 및 부속품 설명

덕주코리아 문의 010 2845 4417

중국 덕주기상창 www.dzjc.com (딮홀가공기/선반 최선도업체)

한국 총판및 A/S 총괄 사후관리 써비스 :덕주코리아

주요 취급품목

1. 각종 수평선반 (소형/중형/대형/특대형 장축/대주축경/수직선반.탁상선반 포함)

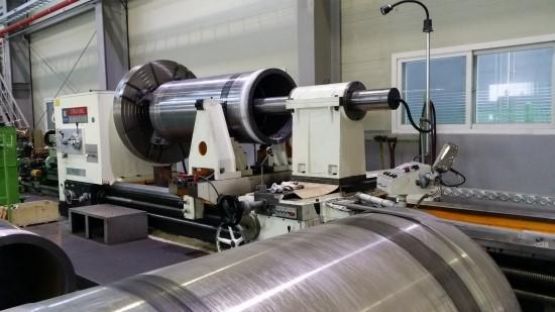

*선반에 딮홀 보링바설치/대주축경 선반에 테이퍼 절삭장치/전용기 제작용 선반 베드/딮홀기 베드 공급

2. 각종 딮홀 가공기(보오링기/드릴링기/SRB/BTA/GUNDRILL/6축/호닝/실린더정밀 가공복합기 등)

3. 각종 밀링기(1.5호기밀링/양두밀링/면치기 밀링/각치기 밀링/프레너밀러등)

4. 연마기(칼날/평면/원통/로타리/무심)

5. 드릴/테핑/보루방(레디얼/자동 텦보루방)

6. 와이어컷(몰리브덴) 경제형/고급형 매우 특별염가제공

7. 각종 레이져 가공기 (파이버/CO2레이져컷팅기/용접기)

8. 각종 조각기(라우터기/패턴기등)

각별히 주요취급하는 기종 각인하기

1. 각종 선반과 딮홀가공기

2. 1.5호 밀링기

3. 칼날연마기

4. 와이어컷

5. CO2레이져 컷팅기

주요 취급기계 상세 안내

<선반과디프홀기 > 중국 덕주기상창 홈페이지 www.dzjc.com

선반과 디프홀기 선도 업체

선반 : 수평선반/수직선반/대주축경 선반

디프홀 가공기 : 보오링(PUSH&PULL)/드릴링/호닝/SRB/BTA/GUNDRILL/6AXIS/SPIRAL MILLING/WAVE CUTTING기등 일체)

각 종 특수가공 전용기설비 문의 (복합기포함)

실린더라이너 황삭/정삭설비등 해양 시추설비 관련 디프홀 가공설비 내륙/해상 풍력에너지 관련 가공설비등

선반과 디프홀기 관련 기계문의(특수 가공전용기 제작 문의 포함)

하기 중국 덕주기상창 주요 기계기종 참고바랍니다

Conventional Engine Lathe

CW-D Series Horizontal Lathe Machine 6Tons Load

CW/CQW Conventional Horizontal Lathes 3Tons Load

CD6163/CD6180 Universal Horizontal Lathe

CD6150B Horizontal Conventional Lathe Machine

CDZ6150 Light Type Conventional Lathe

CW-H Series Heavy Duty Horizontal Lathe Machine 20Tons Load

CW-H/1 Series Conventional Lathe Machine 15Tons Load

CW-N Series Heavy Duty Lathe Machine 25Tons Load

CW-L Series Conventional Lathe 10Tons Load

As one of the most professional conventional engine lathe manufacturers and suppliers in China, we're featured by good service and competitive price. Please rest assured to buy high quality conventional engine lathe for sale here from our factory. Single Coordination CNC Gun Drilling Machine, CKD-H/1 Series Horizontal CNC Lathe 15Tons Load, Oil Cylinder Special CNC Lathe

CKD-L Series CNC Horizontal Lathe Machine 10Tons Load

Oil Cylinder Special CNC Lathe

CKD6150 Series CNC Horizontal Lathe

CKD6163 Series Horizontal CNC Lathe Machine

CKD6163D Series CNC Lathe Machine 3Tons Load

CKD-D Series High Precision CNC Lathe 6Tons Load

CKD-H/1 Series Horizontal CNC Lathe 15Tons Load

CKD-H Series CNC High Precision Lathe 20Tons Load

CKD-N Series CNC High Accuracy Lathe 25Tons Load

CK6150S CNC Slant Bed Lathe

Slant Bed CNC Lathe

As one of the most professional CNC horizontal lathe manufacturers and suppliers in China, we're featured by good service and competitive price. Please rest assured to buy high quality CNC horizontal lathe for sale here from our factory. T21100 Deep Hole Drilling And Boring Machine, CNC Heavy Duty Lathe Machine 32Tons Load, CKD-H Series CNC High Precision Lathe 20Tons Load

Heavy Duty CNC Horizontal Lathe

CNC Heavy Duty Lathe 25Tons Load

CNC Heavy Duty Lathe Machine 32Tons Load

Heavy Duty Horizontal CNC Lathe 40Tons Load

Heavy Duty CNC Lathe 63Tons Load

Heavy Duty CNC Lathe Machine 80Tons Load

As one of the most professional heavy duty CNC horizontal lathe manufacturers and suppliers in China, we're featured by good service and competitive price. Please rest assured to buy high quality heavy duty CNC horizontal lathe for sale here from our factory. Universal Horizontal Lathe, Deep Hole Drilling Boring Machine, CW/CQW Conventional Horizontal Lathes 3Tons Load

Vertical Lathe

Single Column Vertical Lathe

Double Column Vertical Lathe 20tons

Double Column Vertical Lathe Machine 40tons

As one of the most professional vertical lathe manufacturers and suppliers in China, we're featured by good service and competitive price. Please rest assured to buy high quality vertical lathe for sale here from our factory. CW-L Series Conventional Lathe 10Tons Load, Slant Bed CNC Lathe, CKD-H Series CNC High Precision Lathe 20Tons Load

Deep Hole Drilling and Boring Machine

T2120G Deep Hole Drilling and Boring Machine

T21100 Deep Hole Drilling and Boring Machine

T2180 Deep Hole Drilling and Boring Machine

T2150 Deep Hole Drilling and Boring Machine

T2136G Deep Hole Drilling and Boring Machine

T2125G Deep Hole Drilling and Boring Machine

T2110G Deep Hole Drilling and Boring Machine

T2250A Deep Hole Boring Machine

T2236G Deep Hole Boring Machine

T2225G Deep Hole Boring Machine

As one of the most professional deep hole drilling and boring machine manufacturers and suppliers in China, we're featured by good service

CNC Deep Hole Honing Machine

2M2125A 2M2135A Deep Hole Honing Machine

2M2150 Deep Hole Honing Machine

HMS25 HMS35 HMS50 Deep Hole Honing Machine

As one of the most professional CNC deep hole honing machine manufacturers and suppliers in China, we're featured by good service and competitive price. Please rest assured to buy high quality CNC deep hole honing machine for sale here from our factory. 2M2125A 2M2135A Deep Hole Honing Machine, CW-H Series Heavy Duty Horizontal Lathe Machine 20Tons Load, Double Column Vertical Lathe Machine

Deep Hole Gun Drilling Machine

Deep Hole Gun Drilling Machine

CNC Depth Hole Drilling Machines

Single Axis CNC Deep Hole Gun Drilling Machine

Four Axis CNC Deep Hole Gun Drilling Machine

Double Axis CNC Deep Hole Gun Drilling Machine

Three Coordination Single Axis CNC Deep Hole Gun Drilling...

Three Coordination Two Axis CNC Deep Hole Gun Drilling Ma...

Three Coordination Four Axis CNC Deep Hole Gun Drilling M...

As one of the most professional deep hole gun drilling machine manufacturers and suppliers in China, we're featured by good service and competitive price. Please rest assured to buy high quality deep hole gun drilling machine for sale here from our factory. Slant Bed CNC Lathe, CD6150B Horizontal Conventional Lathe Machine, Four Axis CNC Deep Hole Gun Drilling Machine

Deep Hole Cutting Tool

Deep Hole Honing Cutting Tool

Deep Hole Boring Cutting Tool

덕주코리아 문의 010 2845 4417

1.5호 밀링기 취급전문

1.5호기 밀링기 취급 30여년 대만산/중국산

이젠 중국산 1.5호기 밀링기를 주로 취급합니다

1. 스핀들 테이퍼

종전모델 대표 표준타잎 R-8로 하느냐? NT-30번으로 하느냐?

* 훼이스컷팅 작업물량이 많다면 NT-30선택이 좋다고 봄

* 각별히 NT40번으로 원할시는 슬리브 직경도 늘리는 것이 필요한지? 87MM--> 105MM

슬라이드 구조도 도브테일(DOVETAIL) 보다 정방형구조가 요구 되는 지?

테이블 길이 연장도 필요한지 1270MM -->1370MM

2. 디지탈 2축/3축 장착여부

3. Z축 상하 모터 장착여부

4. X축 가로 이송/Y축 전후이송 자동이송 파워피드 장치 장착여부

5. 절삭유장치/윤활유 급유장치 장착

6. 콜렛트 척/드릴척/클렘핑킷츠/6" 바이스 혹은 8" 바이스
7. 최고급 사양 도입 시

step pully head type ---> VARIABLE SPEED MOTOR

tooling draw bar type ---> power (pnematic power )

control panel ---> HANGER TYPE결합 with DRO

8. 특별부품 추가 구비 여부 OPTIONAL ACCYS

* SLOTTING HEAD (스롯팅헤드)*분할장치 (DIVIDING HEAD)

*로타리 테이블 (수직형/복합형)*보오링 헤드

Model	X6325 Turret Milling Machine
Table size(mm)	1270X254
Long travel(mm)	780
Cross travel(mm)	400
Vertical travel(mm)	420
T-slot No. and size	3x16
Ram travel(mm)	500
Distance from spindle nose to table surface(mm)	0-350
Spindle hole taper	R8/NT30
Max tapping	M16
Maxi Drilling diameter	50
Spindle travel(mm)	127
Spindle speed	Standard:16steps Shiftgrade:60HZ:80-5440
Auto quill feed	Three steps: 0.04/0.08/0.15 mm/revolution
Spindle power	2.2KW/3HP
Head swivel	90°
Head tilting	45°
G.W./N.W. (kg)	1050/1000

X6325 Turret milling machine optional accessories:

Electric Power feed X,Y axis

DRO ON X,Y,Z-AXIS,SINO brand

SLOTTING HEAD

Machine VICE

Variable/Frequency speed mill head

Milling chuck collets ER40-R8/15PCS

58PCS Clamping kits

X6325 China manufacturer Taiwan milling head turret milling machine Vertical milling machine

Products Description

The main performance characteristics:

1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Product main technical specifications:

Specifications	Units	X6325
Table size	mm	1270x254(10”x50”)
Table travel	mm	780/400/420
T slot(number-width-pitch)	mm	3-16-50
Spindle taper		standard:R8 optional:ISO40
Spindle speed range	rpm	standard:16 steps, 50HZ:65-4500 ,60HZ:80-5440 Optional:variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15(3 steps)
Distance between spindle nose and table surface	mm	90-510
Main motor power	kw	2.2
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	1400
Overall dimension	mm	1550x1650x2250

Details Images

Taiwan turret milling head

Taiwan turret milling head can be rotated 45° (front and back) and rotated 90° (left and right)

3-axis DRO system

Optional 3-axis digital readout

working table

Overfrequency automatic quenching precision grinding Guide rail scraping

Mechanical/Electric Pump Lubrication

Standard mechanical lubrication Optional electric pump lubrication

X/Y/Z automatic feed

X/Y axis automatic feeding Z axis electric lift Improve work efficiency

TURRET MILLING MACHINE FEATURES:
Feature of X6323
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6325:
Rectangular guide way on Y-axis and Z-axis is feature a good rigidety
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
Feature of X6325D:
Rectangular guide way is adopted both on Y and Z axis.
The guide way on saddle is lined with TF wearable material. Which makes the machine stably and rigidly, also makes it beautiful and easy to operate.5HP milling head motor and quill diameter is 100MM
Feature of X6333
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6330A
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.

MODEL	X6323A	X6325	X6325D	X6333	X6330A
Table size	2301067 2301246	2541270 2541370	2541270 2541370	3301370 3301500	3051370 3051500
Long travel(mm)	650 840	850 950	850 950	840 1000	870 1000
Cross travel(mm)	305	420	420	368	380
Vertical travel(mm)	350	420	420	450	430
T-slot No.and size(mm)	3x16
Ram travel(mm)	315	470	470	500	500
Distance from spindle nose to table surface(mm)	0-350	0-405	0-405	0-450	0-350
Spindle hole taper	Standard:R8	standard:ISO40
Spindle travel(mm)	127
Spindle speed(r.p.m)	standard: shift grade 16, 50HZ 65-4500,60HZ80-5440
Spindle speed(r.p.m)	optional:variable:60-4200
Auto.quill feed	Three steps:0.04/0.08/0.15mm/revolution
Spindle motor	2.25kw/3hp	2.25kw/3hp	3.75kw/5hp	3.75kw/5hp	3.75kw/5hp
Head swivel	90°
Head tilting	45°			Fix
Dimension of package	1.4x1.48x2.03	1.52x1.55x2.08	1.52x1.55x2.08	1.8x2.02x2.18	1.57x1.65x2.08
G.W/set	1100	1550	1590	2300	1750

칼날연마기

중국공작기계 안내 기계상담및 A/S 부품 공급상담

덕주코리아 문의 010 2845 4417 메일문의 sksea99@daum.net

1.선반과 딮홀 가공기www.dzjc.com

선반: 소형/중형/대형,범용/CNC, 대주축경/딮홀보오링바 장착 각종 특수가공선반류

딮홀: 보오링(PUSH&PULL),드릴링/SRB/호닝(썬넨타잎도 가능)/BTA/건드릴/6축~8축

2.밀링기/레디얼/초대형머시닝센타/면치기/양두밀링www.weida-mc.com

3.연마기(칼날/평면/원통/공구/로타리및 각종 특수연마기)

*칼날연마기 취급전문 www.bstsk.com

*평면연마기 대만www.sunnyfreeport.com

*원통연마기 중국상해www.smtw.com

4. 와이어 컷(중국 몰리브덴 와이어컷팅기)www.teruimachine.com

5. 레이져가공기(파이버/CO2 컷팅/용접기/마킹기/조각기등)

6. 프레스/절곡기/절단기 각종 금속판형가공기계류www.ysdcnc.com
