ㅡ.CNC : FANUC 15-T

ㅡ.사용여부 : 시운전 가능

(제원일부)

ㅡ.TURN MILL 기능-有

ㅡ.TABLE : ∮1,250

ㅡ.최대스윙 : ∮1,450

ㅡ.최대 가공길이 - 800

ㅡ.램 상하(Z-AXIS) : 600

ㅡ.TABLE LOAD : 2,000Kg

ㅡ.ATC : CUTTING-8TOOLS,MILLING-16TOOLS

CNC VTL with C-axis (Milling)

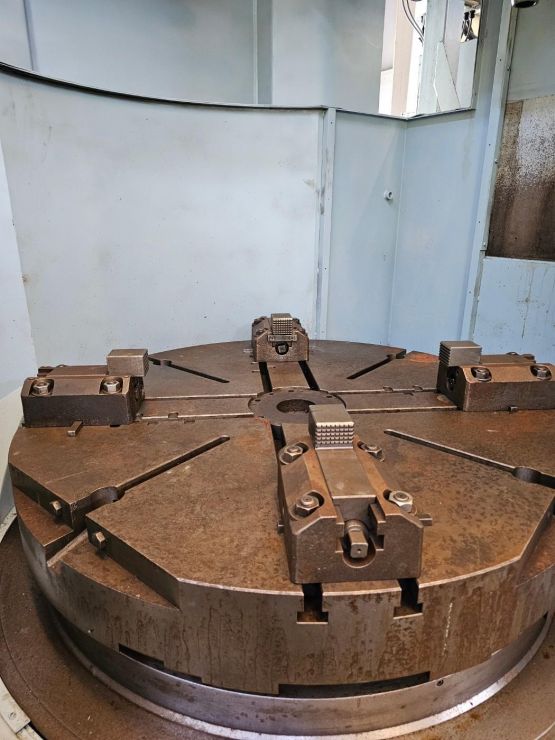

Table dia. : 1250 mm ,

Swing dia. : 1450 mm,

ATC :

Cutting : 8 tools,

Milling : 16 tools,

Height from table top to Cutting Tool Holder end : 920 mm,

Height from table top to Milling Spindle end : 880 mm,

Max. Cutting Height : 750 mm,

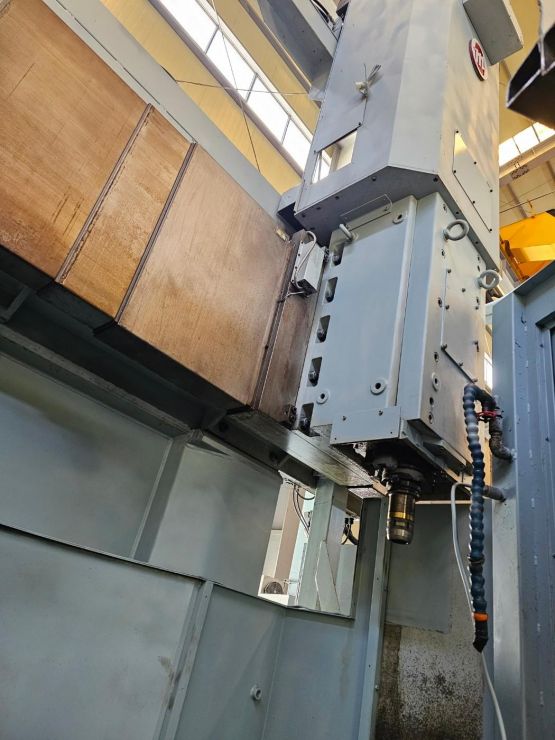

Z-axis : 600 mm (Ram Up-Down),

Ram size : 180 x 180 mm,

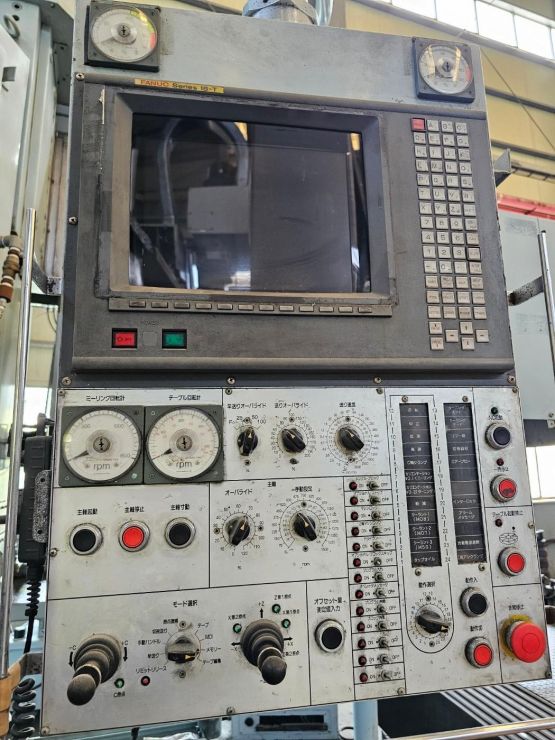

Control : Fanuc-15T,

* Cross rain fixed type,

* With some tools,,

* Max. Table load : 2000 Kg,
