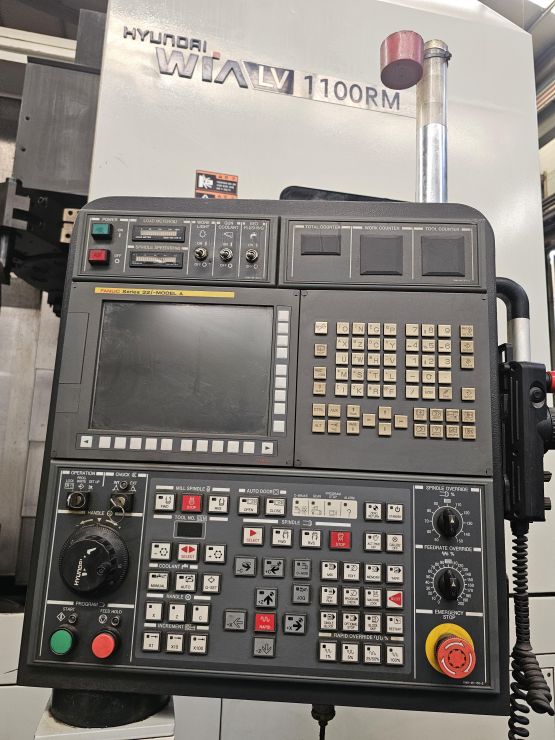

MACHINE CAPACITIES

Swing Diameter Over Bed 1,355 MM

Swing Diameter Over Carriage 1,250 MM

Max. Turning Diameter 1,160 MM

Max. Turning Length (Height) 1,000 MM

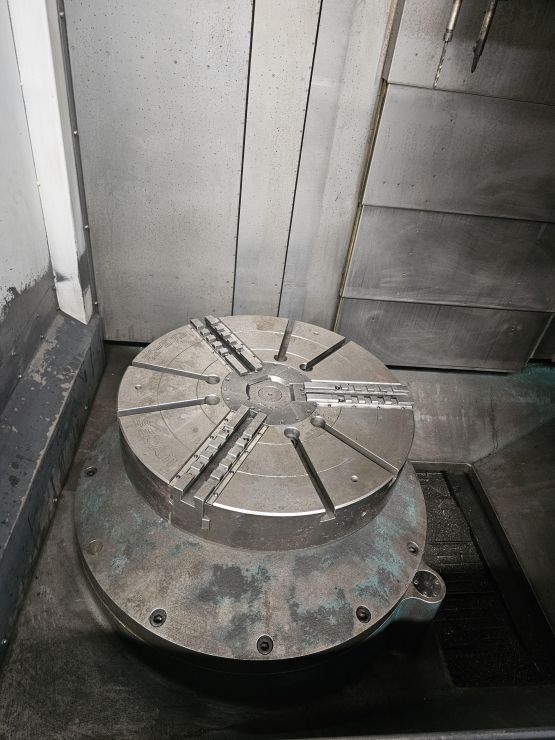

SPINDLE Std. Chuck Diameter 32" - 813 MM

Spindle Bore Diameter 110 MM

Spindle Power 45.0 / 55.0 / 60.0 KW Torque (Max/Cont.) 6,490 / 5,310 NM

Spindle Type BELT Spindle Nose Diameter 15" - 380 FLAT MM

C-Axis Indexing 0.001 DEG FEED

Travel X 620 MM Travel Z 1000 MM

Rapid Traverse Rates - X / Z 24 / 24 M/MIN Slide Type

HARDENED & GROUND BOX GUIDEWAYS

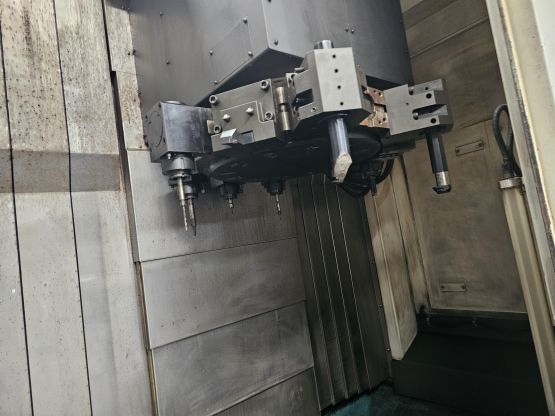

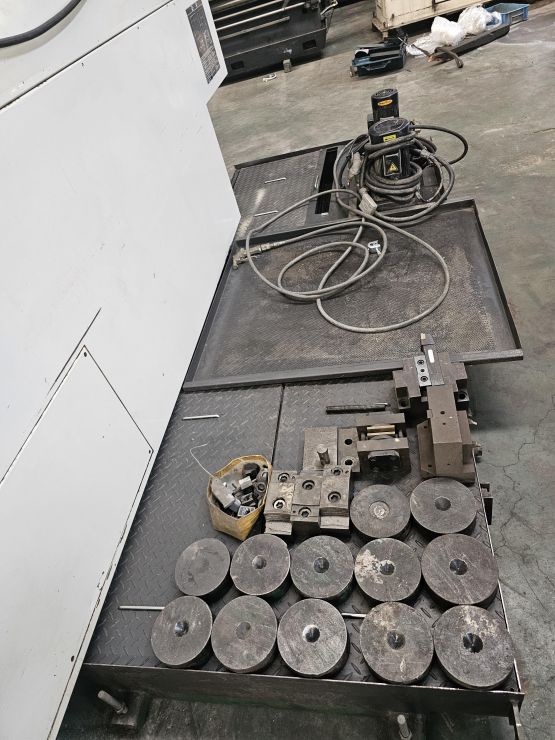

TURRET Number of Turret Stations 12 Tool Size - OD 32 MM² Tool Size - ID Diameter 80 MM

Indexing Time 0.6 SEC / STEP LIVE TOOL Motor (Max/Cont) 11.0 / 7.5 KW

Milling Tool Speed 3,000 RPM Torque (Max/Cont) 70 / 47.8 NM

Collet Size (ER50) Diameter 34 MM Type BMT 85P TANK CAPACITY

Coolant Tank 420 L Lubricating Tank 4 L

Electric Power Supply 52 KVA Voltage 415 V / 50 HZ / 3PH

MACHINE Floor Space (L x W) 2,922 X 4,325 MM

Height 3,728 MM Weight 22,000 KG
